Shimano WH-M8200-TL-R12-B-29 -5134 DEORE XT Rear Wheel 12 speed Ersatzteile

WH-M8200-TL-R12-B-29 -5134 DEORE XT Rear Wheel 12 speed WH Wheels - Laufräder

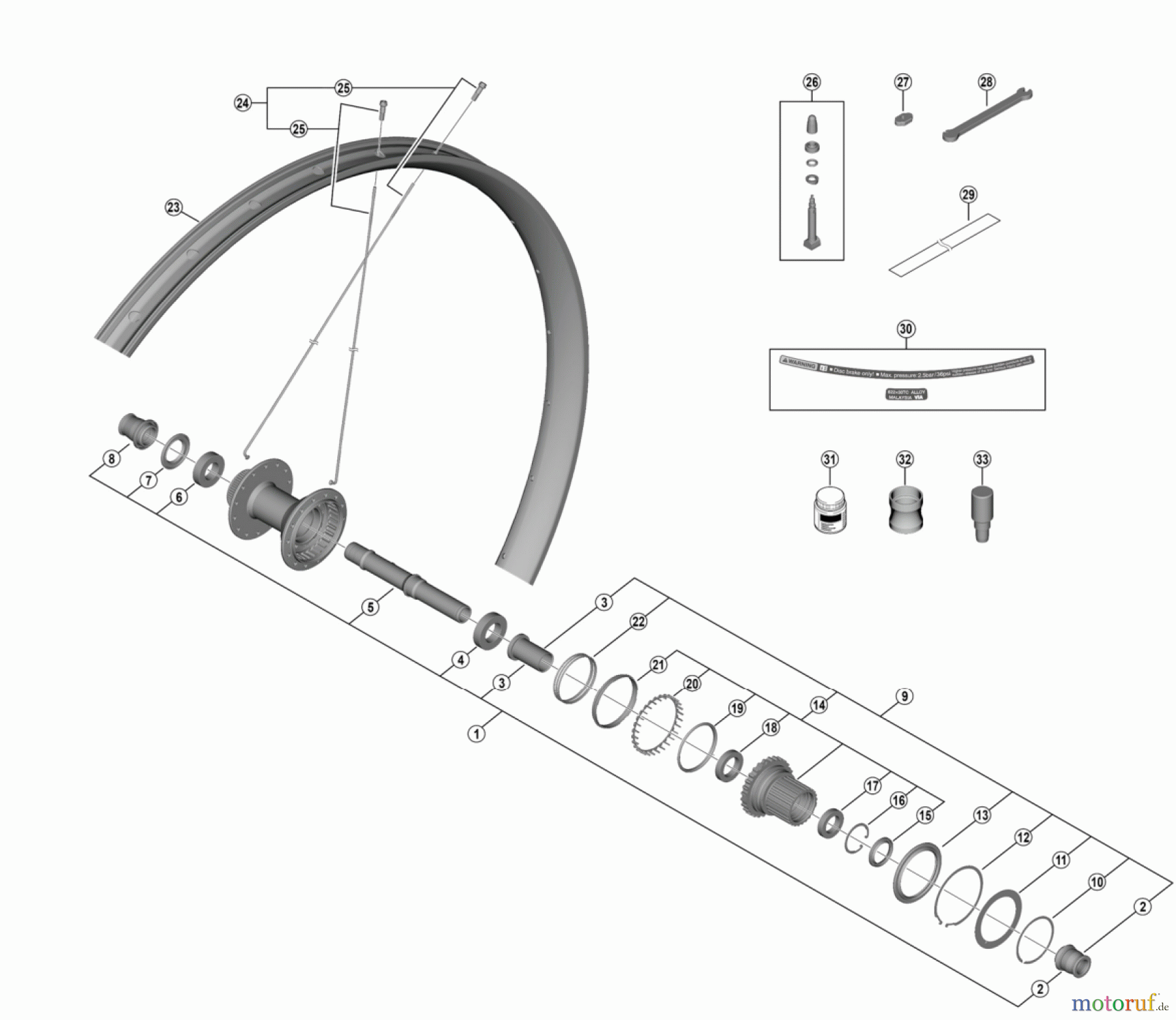

Hier finden Sie die Ersatzteilzeichnung für Shimano WH Wheels - Laufräder WH-M8200-TL-R12-B-29 -5134 DEORE XT Rear Wheel 12 speed. Wählen Sie das benötigte Ersatzteil aus der Ersatzteilliste Ihres Shimano Gerätes aus und bestellen Sie einfach online. Viele Shimano Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

BildNr	Artikel Nummer	Bezeichnung
1	Y-3KH98010	Complete hub axle Y3KH98010
2	Y-3KG98020	Right cap Y3KG98020
3	Y-3KG9801T	Sleeve Y3KG9801T
4	Y-2LG9801T	Sealed cartridge bearing (17 x 30 x 7 / CN) Y2LG9801T
5	Y-3KG98030	Hub axle Y3KG98030
6	Y-3KH9801T	Sealed cartridge bearing (15 x 28 x 7 / CN) Y3KH9801T
7	Y-26D10000	Seal ring Y26D10000
8	Y-3KG98040	Left cap Y3KG98040
9	Y-3KG98050	Freewheel body replacement kits Y3KG98050
10	Y-3KG9804T	Snap ring (diameter 36.9) Y3KG9804T
11	Y-3KG9805T	Outer dust cover Y3KG9805T
12	Y-3KG9806T	Snap ring (diameter 52) Y3KG9806T
13	Y-3KG9807T	Outer seal ring Y3KG9807T
14	Y-3KG98060	Freewheel body unit Y3KG98060
15	Y-3KG9808T	Rubber seal Y3KG9808T
16	Y-3KG9809T	Snap ring Y3KG9809T
17	Y-3KG9810T	Sealed cartridge bearing (15 x 24 x 5 / C3) Y3KG9810T
18	Y-3KG9811T	Sealed cartridge bearing (17 x 26 x 5 / C3) Y3KG9811T
19	Y-3KG9812T	Slider Y3KG9812T
20	Y-3KG9813T	Spacer Y3KG9813T
21	Y-3KG9814T	Spacer fixing ring Y3KG9814T
22	Y-3KG9815T	Coil spring Y3KG9815T
23	--	Rim {28H}
24	--	Spoke unit {spoke (297 mm x 28 pcs.) / nipple (28 pcs.)}
25	Y-0U398010	Spoke (297 mm/1 pc.) and nipple (1 pc.) Y0U398010
26	Y-0U298020	Valve unit Y0U298020
27	Y-4RJ10000	Valve tool Y4RJ10000
28	Y-0MK14000	TL-WHR92 Nipple wrench 3.4 Y0MK14000
29	Y-0TW9802T	Tubeless tape Y0TW9802T
30	Y-0U298030	Rim sticker unit Y0U298030
31	Y-38Z98000	Seal grease for freehub (50 g) A Y38Z98000
32	Y-1Y19801T	TL-FH17A Seal ring presser A Y1Y19801T
33	Y-2LF9802T	TL-HB017 Hub bearing remover Y2LF9802T
