PORTER CABLE 50611 CF2800 Ersatzteile

CF2800 50611

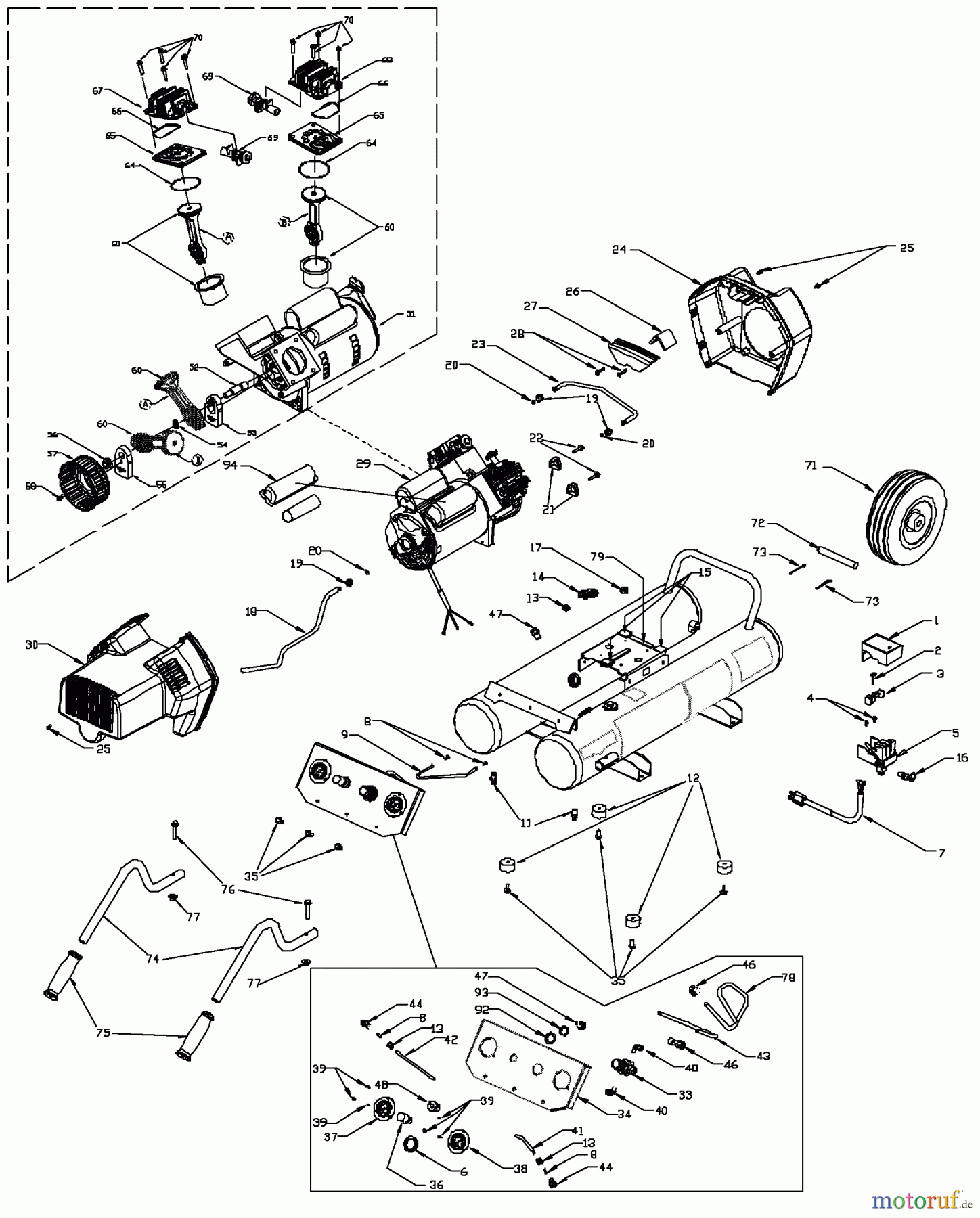

Hier finden Sie die Ersatzteilzeichnung für PORTER CABLE Divers 50611 CF2800 Seite 1. Wählen Sie das benötigte Ersatzteil aus der Ersatzteilliste Ihres PORTER CABLE Gerätes aus und bestellen Sie einfach online. Viele PORTER CABLE Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

BildNr	Artikel Nummer	Bezeichnung
1	SB-AC-0556	COVER PRES SWITCH W/
2	SB-SSF-556	SCREW #10-32X1.00 HH
3	SB-CAC-1392	STRAIN RELIEF
4	SB-SUDL-9-1	SCHRAUBE
5	SB-Z-AC-0653	SWITCH PRES 2PORT 10
6	SB-CAC-61	RING PANEL MOUNTING
7	SB-AC-0539	ASSY CORD POWER
8	SB-SSP-9013	INSERT TUBING BRASS
9	SB-AC-0110-1	TUBE PRES REL .250OD
11	SB-A06891	DRAIN VALVE
12	SB-D24721	ISOLATOR
13	SB-SSP-7811	ASSY NUT SLEEVE 1/4
14	SB-AC-0631	VALVE CHECK 1/2NPT X
15	SB-ACG-19	ISOLATOR 3 POINT MOU
16	SB-97503734	VALVE SAFETY 150 .12
17	SB-SSP-7813	MUTTER
18	SB-AC-0126	TUBE OUTLET .375OD A
19	SB-SSP-7821-1	NUT .563-18 UNF HEX
20	SB-SSG-3105	O-RING
21	SB-ACG-18	CUP SADDLE MOUNT
22	SB-SSF-990	SCREW .250-20X1.25 U
23	SB-AC-0099	TUBE OUTLET .375OD A
24	SB-DAC-244	SHROUD FRONT TWIN CY
25	SB-ACG-408	ASSY FASTENER
26	SB-ACG-12	ELEMENT FILTER INTAK
27	SB-ACG-13	COVER INTAKE MUFFLER
28	SB-SSF-554	SCREW #10-14X2.50 PA
29	SB-Z-OPA-4001-2	PUMP
30	SB-DAC-243	SHROUD REAR TWIN CYL
33	SB-AC-0007	REGULATOR 4PORT P1P2
34	SB-AC-0659	CONSOLE W/B P-C PAIN
35	SB-91895680	SCHRAUBE
36	SB-0-00	ZUBEHOER
37	SB-Z-D23032	GAUGE 2.0OD 200PSI .
38	SB-Z-GA-371	GAUGE 2 200 PSI-1/8
39	SB-SSF-642	SCREW #4-40X.375 THD
40	SB-SSP-547	FITTING 1/8 NPT 90 M
41	SB-AC-0681	TUBE GAUGE TANK NYLO
42	SB-CAC-1085-1	TUBE PRESSURE RELIEF
43	SB-AC-0682	TUBE QD 3/8 OD NYLON
44	SB-SSP-546	FITTING 1/8 NPT 90 F
46	SB-SSP-548	FITTING 1/4 NPT 90 M
47	SB-SSP-549	FITTING 1/4NPT CONNE
48	SB-SSP-545	FITTING 1/4 BULKHEAD
51	SB-Z-D29400	MOTOR SERVICE PL 1ST
52	SB-ACG-8	PIN ECCENTRIC
53	SB-ACG-6	COUNTERBALANCE INNER
54	SB-ACG-9	WASHER ALIGN
55	SB-ACG-7	COUNTERBALANCE OUTER
56	SB-ACG-23	NUT .500-20 UNF-2A H
57	SB-ACG-22	FAN RADIAL 6.0 OD
58	SB-39124607	SCREW .250-20X.625 H
60	SB-A02743	KIT CONNECTING ROD
64	SB-SSG-8156	ORING 2.759/2.719ID
65	SB-Z-AC-0032	ASSY VALVE PLATE
66	SB-ACG-45	ORING P/L HEAD
67	SB-AC-0038	HEAD 3/8 OUTLET FRON
68	SB-AC-0037	HEAD 3/8 OUTLET FRON
69	SB-ACG-11	MUFFLER INTAKE 2 CYL
70	SB-SSF-927	SCREW .250-20X1.125
71	SB-D22852	WHEEL PNEU 10.5X3.5
72	SB-DAC-138	AXLE WHEELBARROW
73	SB-SSN-2406	PIN COTTER 5/32X2
74	SB-AC-0674	HANDLE W/B PAINTED
75	SB-AC-0260-1	GRIP HANDLE RIBBED
76	SB-SSF-643	SCREW .313-18X1.75 H
77	SB-SSF-644	NUT .312-18 UNC HEX
78	SB-AC-0658	TUBE TANK 3/8 OD NYL
79	SB-SUDL-6-1	STRIP RUBBER FOOT
92	SB-SSN-633	FITTING 1/4 BULKHEAD
93	SB-SSF-645	NUT .750-16 UNF HEX
94	SB-K-0298	KIT CAPACITOR
