Shimano SG-3C41 (-2330B) NEXUS 3-SPEED HUB w/Coaster Brake Ersatzteile

SG-3C41 (-2330B) NEXUS 3-SPEED HUB w/Coaster Brake SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-3C41 (-2330B) NEXUS 3-SPEED HUB w/Coaster Brake

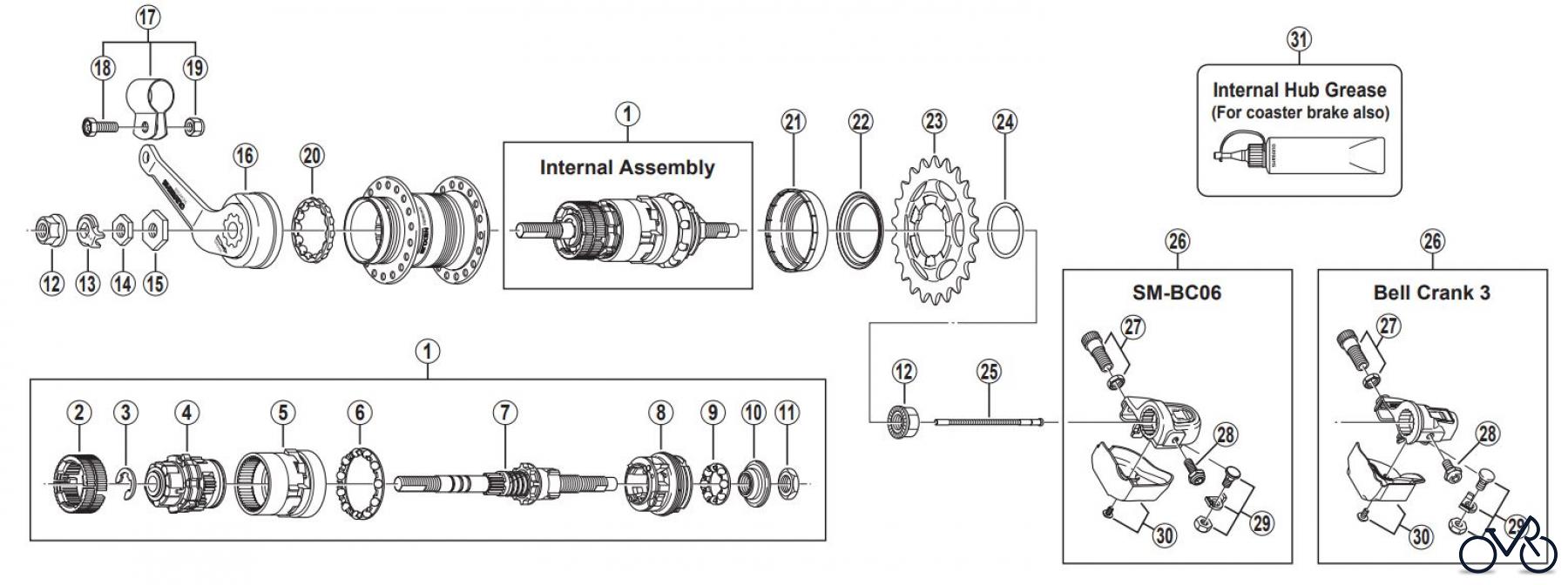

Hier finden Sie die Ersatzteilzeichnung für Shimano SG Getriebenabe /Nabenschaltung SG-3C41 (-2330B) NEXUS 3-SPEED HUB w/Coaster Brake. Wählen Sie das benötigte Ersatzteil aus der Ersatzteilliste Ihres Shimano Gerätes aus und bestellen Sie einfach online. Viele Shimano Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

Häufig benötigte Shimano SG-3C41 (-2330B) NEXUS 3-SPEED HUB w/Coaster Brake Ersatzteile

Driver Unit

Driver Unit

Artikelnummer: Y-33R90400
Suche nach: Y-33R90400
Hersteller: Fahrrad
Shimano Ersatzteil SG-3C41 (-2330B) NEXUS 3-SPEED HUB w/Coaster Brake
18.94 €
für EU incl. MwSt., zzgl. Versand
BildNrArtikel NummerBezeichnung
1 Shimano Internal Assembly (Axle Length 168 mm) Y-35U98010 Internal Assembly (Axle Length 168 mm) Y35U98010
1 Shimano Internal Assembly (Axle Length 175 mm) Y-33R98020 Internal Assembly (Axle Length 175 mm) Y33R98020
1 Shimano Internal Assembly (Axle Length 178 mm) Y-35U98020 Internal Assembly (Axle Length 178 mm) Y35U98020
2 Y-33R90600 Brake Shoe Unit Y33R90600
3 Shimano Stop Ring (ø9 mm) Y-32532000 Stop Ring (ø9 mm) Y32532000
4 Y-33R90700 Carrier Unit Y33R90700
5 Y-33R90800 Ring Gear Unit Y33R90800
6 Shimano Ball Retainer K (7/32" x 11) Y-35U98060 Ball Retainer K (7/32" x 11) Y35U98060
7 Y-33R98050 Axle Unit (Axle Length 168 mm) Y33R98050
7 Shimano Axle Unit (Axle Length 175 mm) Y-33R98040 Axle Unit (Axle Length 175 mm) Y33R98040
7 Y-35U98030 Axle Unit (Axle Length 178 mm) Y35U98030
8 Shimano Driver Unit Y-33R90400 Driver Unit Y33R90400
9 Shimano Ball Retainer J (7/32" x 8) Y-35U98070 Ball Retainer J (7/32" x 8) Y35U98070
10 Shimano Right Hand Cone w/Dust Seal Y-33R90500 Right Hand Cone w/Dust Seal Y33R90500
11 Shimano Right Hand Lock Nut (4.5 mm) for Axle Length 168 mm/178 mm Y-32139040 Right Hand Lock Nut (4.5 mm) for Axle Length 168 mm/178 mm Y32139040
11 Y-32530100 Right Hand Lock Nut (9.9 mm) for Axle Length 175 mm Y32530100
12 Shimano Flange Nut Y-22015010 Flange Nut Y22015010
13 Shimano Non-turn Washer 2 (Yellow) Y-33Z20200 Non-turn Washer 2 (Yellow) Y33Z20200
14 Y-33R49010 Left Hand Lock Nut (3 mm) for Axle Length 168 mm/178 mm Y33R49010
14 Y-33R49020 Left Hand Lock Nut (5 mm) for Axle Length 175 mm Y33R49020
15 Y-33R48010 Stop Nut (3 mm) Y33R48010
16 Shimano Brake Arm Unit Y-35U98040 Brake Arm Unit Y35U98040
17 Y-33F98090 Brake Arm Clip Unit (5/8") Y33F98090
17 Y-33F98100 Brake Arm Clip Unit (3/4") Y33F98100
18 Y-75M06000 Clip Screw (M6 x 16) Y75M06000
19 Y-31727200 Clip Nut Y31727200
20 Shimano Ball Retainer L (3/16" x 14) Y-33R90200 Ball Retainer L (3/16" x 14) Y33R90200
21 Shimano Right Hand Dust Cap A Y-33R05000 Right Hand Dust Cap A Y33R05000
22 Shimano Right Hand Dust Cap B Y-33R52001 Right Hand Dust Cap B Y33R52001
23 Shimano Sprocket Wheel 16T (Black) Y-32203200 Sprocket Wheel 16T (Black) Y32203200
23 Y-73T21830 Sprocket Wheel 18T (Black) Y73T21830
23 Y-73T21930 Sprocket Wheel 19T (Black) Y73T21930
23 Y-73T22030 Sprocket Wheel 20T (Black) Y73T22030
23 Y-73T22130 Sprocket Wheel 21T (Black) Y73T22130
23 Y-73T22230 Sprocket Wheel 22T (Black) Y73T22230
23 Y-73T22330 Sprocket Wheel 23T (Black) Y73T22330
24 Y-32120010 Snap Ring C Y32120010
25 Y-33R98080 Push Rod (81.85 mm) for Axle Length 168 mm Y33R98080
25 Y-33S98180 Push Rod (86.85 mm) for Axle Length 175 mm/178 mm Y33S98180
26 Y-6P198030 SM-BC06 Bell Crank Unit Y6P198030
26 Y-33S95100 Bell Crank 3 Unit Y33S95100
27 Y-33S98010 Cable Adjusting Bolt & Nut Y33S98010
28 Y-33S74000 Bell Crank Body Fixing Bolt for SM-BC06 Y33S74000
28 Y-33S57000 Bell Crank Body Fixing Bolt for Bell Crank 3 Y33S57000
29 Y-33S98030 Inner Cable Fixing Bolt Unit Y33S98030
30 Y-6P198040 Bell Crank Cover & Fixing Screw for SM-BC06 Y6P198040
30 Y-33S98020 Bell Crank Cover & Fixing Screw for Bell Crank 3 Y33S98020
31 Shimano Internal Hub Grease (Net. 100g)Y-04120800 Internal Hub Grease (Net. 100g) Y04120800
