> Roth / TORO > Handgeräte > Schneefräsen > zweistufig > 521 > 622/38054 > 4900001 > Motor Tecumseh (Modell HSSK50-67259M)

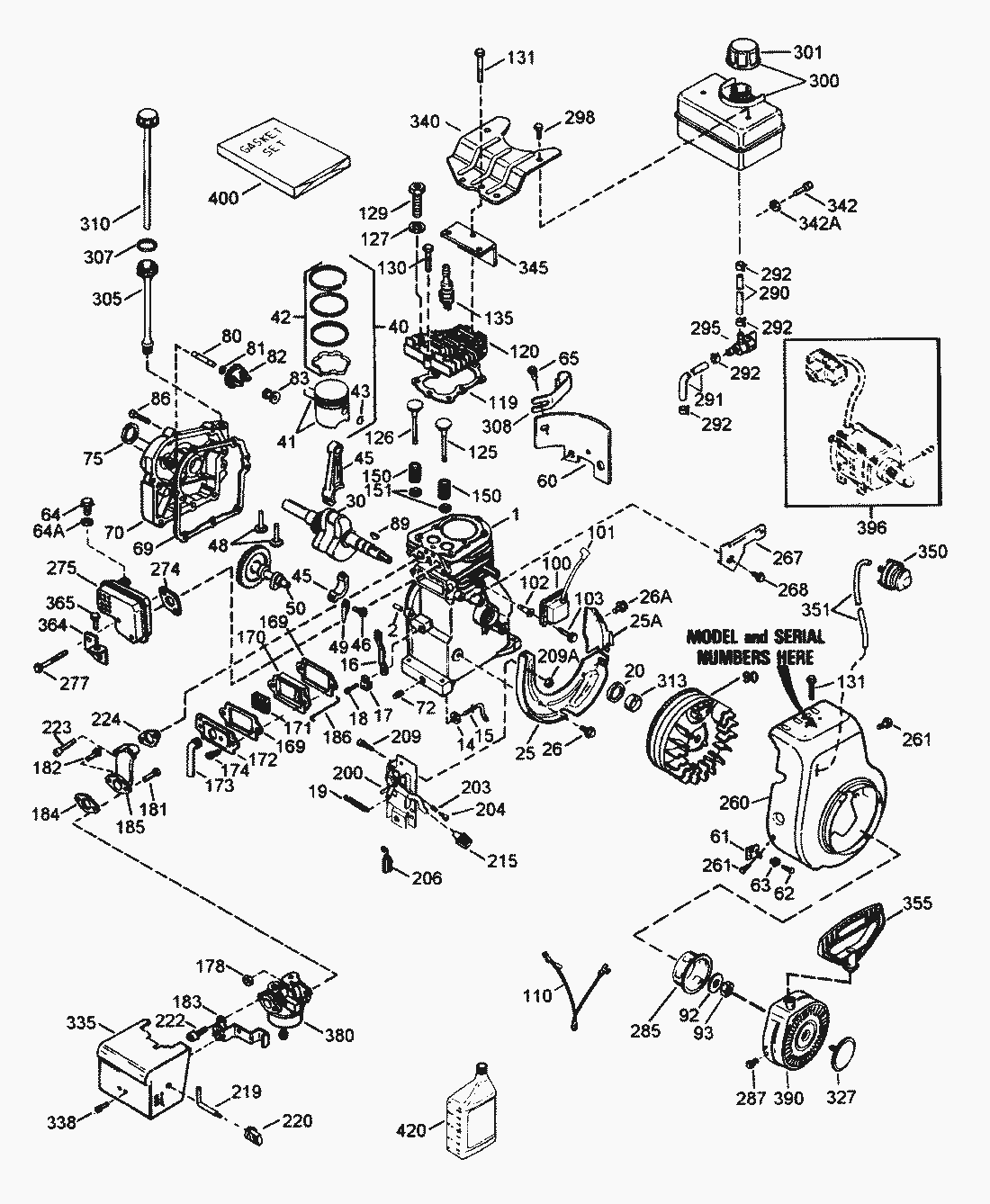

Ersatzteillisten für Toro Roth / TORO Motor Tecumseh (Modell HSSK50-67259M)




Pos.BezeichnungErsatzteilnummer
Valve-Intake (Std.) (Incl. Ref.32644A
Valve-Intake (1/32 oversize) (Incl. Ref. #86) 84 53 3_921008 1 38052 Valve-Intake (1/32 oversize) (Incl. Ref.32645A
Gear Assy., Governor (Incl.30591
Valve, Intake (1/32 oversize) (Incl. #9) 5 6 2_225010 1 38035 Valve, Intake (1/32 oversize) (Incl.29315C
Piston & Pin Assembly (.020 oversize) (Incl. Ref.33564B
Cylinder Assembly (Incl. Ref.33674B
Piston-Pin & Ring Assy. (Std.) (Incl. Ref.34535
Piston & Pin Assembly (.010 oversize) (Incl. Ref.33563B
Piston & Pin Assy. (Std.) (Incl. Ref.33562B
Piston-Pin & Ring Assembly (.020 oversize) (Incl. Ref.34537
Piston-Pin & Ring Assembly (.010 oversize) (Incl. Ref.34536
Control Assembly (Incl.Ref.33858Aà
Valve, Exhaust (Std.) (Incl.29313C
Cover-Cylinder (Incl. Ref.34674C
Rod Assy.-Connecting (Incl. Ref.32875
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
2Pin, Dowel26727
14Washer, Flat28277
15Rod, Governor31334
16Lever, Governor31510
17Verbindungsstueck31335
18Screw, Hex Washer Hd.650548
19Reglerfeder31426
20Simmerring32600
25Baffle-Blower Housing33342à
25Screw-Fil Hd.650139à
26Schraube650561
26
30Crankshaft Assembly34740
42Kolbenringsatz33567
Kolbenringsatz33568
Ring Set-Piston (.020 oversize)33569
43Sicherungsring20381
46Bolt, Connecting Rod32610A
48Lifter, Valve27241
49Dipper-Oil32654
50Camshaft (Compression Release)33158
60Extension, Blower Housing29745
61Bracket, Grommet Mounting34126
62Schraube650760
63Grommet, Plastic28545
64Schraube30063
64Washer-Flat8345
65Schraube650128
69Gasket-Cylinder Cover*27677A
72Oelablass-Schraube27642
75Simmerring27897
80Shaft-Governor30574A
81Washer, Flat30590A
83Spool, Governor30588A
86Screw, Hex Hd.650488
89Keil610961
90Flywheel611081
92Scheibe650815
93Nut, Flywheel650863
100Lamination & Coil Assy., Solid State (Incl.34443A
101Cover, Spark Plug610118
102Stehbolzen650872
103Schraube650814
110Kabel35557
119Gasket-Cylinder Head*36443
120Zylinderkopf36441
127Washer, Flat650691
129Screw-Special Hex Hd.650818
130Screw, Hex Flange Hd.6021A
131Screw, Hex Flange Hd.650694A
135Spark Plug, Resistor (Champion RJ-19LM)35395
150Ventilfeder31672
151Ventilsicherung31673
169Gasket-Valve Cover*27234A
170Entluefter27666
171Element, Breather31410
172Cover-Valve Spring34146
173Entlueftungsschlauch35350
174Schraube30200
178Nut & Lockwasher29752
181Screw-Hex Hd.650870
182Screw-Hex Hd.6201
183Halteplatte34583
184Gasket, Carburetor*26756
185Pipe-Intake33691
186Reglergestaenge32698
203Druckfeder31342
204Screw, Fil. Hd.650549
206Kurzschlusschalter610973
209Schraube650139
209Locknut, Hex30322
215Knopf35440
219Rod-Choke34582
220Knopf35438
222Schraube28820
223Schraube650664
224Gasket-Intake*33673A
