> Roth / TORO > Handgeräte > Schneefräsen > zweistufig > 521 > 622/38054 > 0000001 > Motor Tecumseh (Modell HS50-67259J)

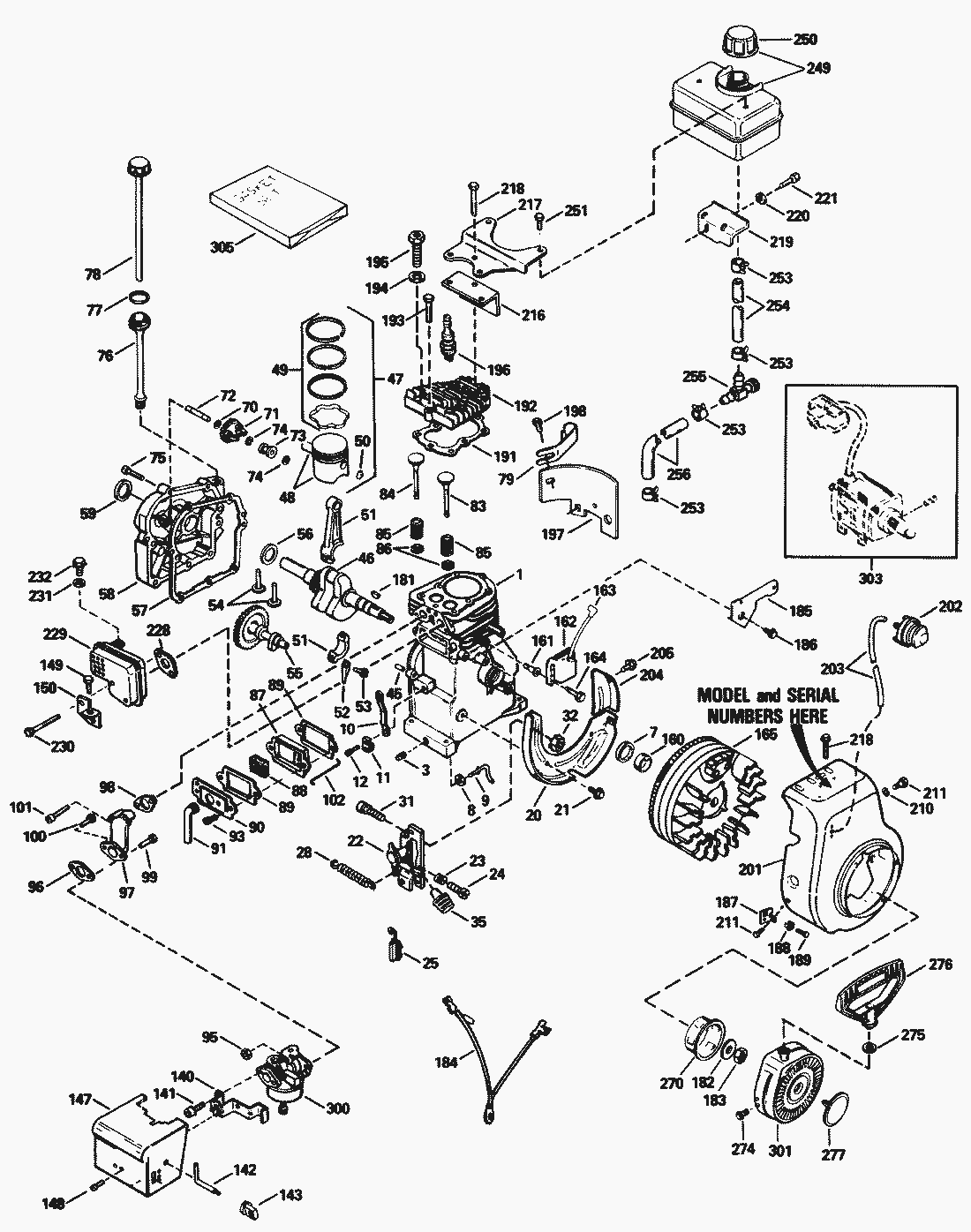

Ersatzteillisten für Toro Roth / TORO Motor Tecumseh (Modell HS50-67259J)




Pos.BezeichnungErsatzteilnummer
Valve-Intake (Std.) (Incl. Ref.32644A
Valve-Intake (1/32 oversize) (Incl. Ref. #86) 84 53 3_921008 1 38052 Valve-Intake (1/32 oversize) (Incl. Ref.32645A
Gear Assy., Governor (Incl.30591
Valve, Intake (1/32 oversize) (Incl. #9) 5 6 2_225010 1 38035 Valve, Intake (1/32 oversize) (Incl.29315C
Piston & Pin Assembly (.020 oversize) (Incl. Ref.33564B
Cylinder Assembly (Incl. Ref.33674B
Cover-Cylinder (Incl. Ref.34674A
Piston-Pin & Ring Assy. (Std.) (Incl. Ref.34535
Piston & Pin Assembly (.010 oversize) (Incl. Ref.33563B
Piston & Pin Assy. (Std.) (Incl. Ref.33562B
Piston-Pin & Ring Assembly (.020 oversize) (Incl. Ref.34537
Piston-Pin & Ring Assembly (.010 oversize) (Incl. Ref.34536
Valve, Exhaust (Std.) (Incl.29313C
Control Assy., Speed (Incl.à33858A
Rod Assy.-Connecting (Incl. Ref.32875
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
3Oelablass-Schraube27642
7Simmerring32600
8Washer, Flat28277
9Rod, Governor31334
10Lever, Governor31510
11Verbindungsstueck31335
12Screw, Hex Washer Hd.650548
20Baffle, Blower Housingà33342
21Schraube650561
23Druckfeder31342
24Screw, Fil. Hd.650549
25Kurzschlusschalter610973
28Reglerfeder31426
31Screw, Fil. Hd.à650139
32Locknut, Hexà30322
35Knopf35440
45Pin, Dowel26727
46Crankshaft Assembly34740
49Kolbenringsatz33567
49Kolbenringsatz33568
49Ring Set-Piston (.020 oversize)33569
50Sicherungsring20381
52Dipper-Oil32654
53Bolt, Connecting Rod32610A
54Lifter, Valve27241
55Camshaft (Compression Release)33158
56Washer-Thrust32323
57Gasket-Cylinder Cover*27677A
59Simmerring27897
70Washer-Flat35479
72Reglerbolzen30574
73Spool, Governor30588A
74Sicherungsring29193
75Screw, Hex Hd.650488
76Oelrohr35554
77O.Ring35499
78Oelmesstab35556
79Klammer35539
85Ventilfeder31672
86Ventilsicherung31673
87Entluefter27666
88Element, Breather31410
89Gasket-Valve Cover*27234A
90Cover-Valve Spring34146
91Entlueftungsschlauch35350
93Schraube650128
95Nut & Lockwasher29752
96Gasket, Carburetor*26756
97Pipe-Intake33691
98Gasket-Intake*33673A
99Screw-Hex Hd.6201
100Screw-Hex Hd.650870
101Schraube650664
102Reglergestaenge32698
140Halteplatte34583
141Schraube28820
142Rod-Choke34582
143Knopf35438
147Cover-Carburetor35072
148Schraube650257
149Schraube650735
150Haltewinkel33333
160Spacer-Flywheel Key34080
161Stehbolzen650872
162Lamination & Coil Assy., Solid State (Incl.34443A
163Cover, Spark Plug610118
164Schraube650814
165Flywheel611081
181Keil610961
182Scheibe650815
183Nut, Flywheel650863
184Kabel35557
185Bracket, Hold Down34212
