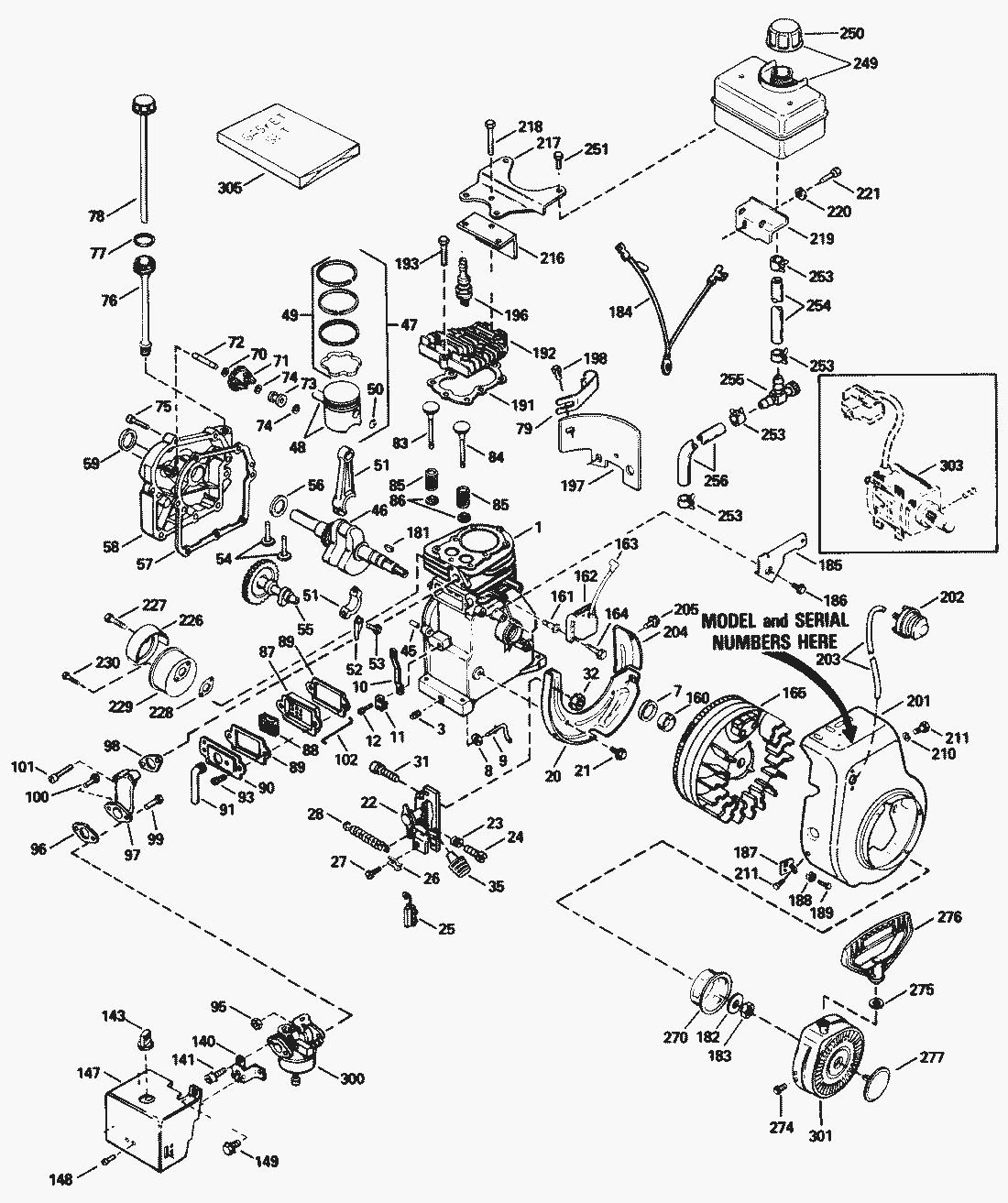

Ersatzteillisten für Toro Roth / TORO Motor Tecumseh (Modell H35-45598T)




Pos.BezeichnungErsatzteilnummer
Cylinder Assy. (Incl. Ref.34708A
Piston & Pin Assy. (.010 over size) (Incl.32548B
Piston, Pin & Ring Assy. (.020 oversize) (Incl.34516
Valve, Intake (1/32 oversize) (Incl. #9) 5 6 2_225010 1 38035 Valve, Intake (1/32 oversize) (Incl.29315C
Piston & Pin Assy. (Std.) (Incl.32538B
Piston & Pin Assy. (.020 over size) (Incl.32549B
Cover-Cylinder (Incl. Ref.34674A
Pipe, Intake (Incl.28416A
Piston, Pin & Ring Assy. (.010 oversize) (Incl.34515
Valve, Intake (Std.) (Incl.29314B
Valve, Exhaust (Std.) (Incl.29313C
Control Assy., Speed (Incl.à33858A
Rod Assy.-Connecting (Incl. Ref.32875
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
3Oelablass-Schraube27642
7Simmerring32600
8Washer, Flat28277
9Rod, Governor31334
10Lever, Governor31510
11Verbindungsstueck31335
12Screw, Hex Washer Hd.650548
20Baffle, Blower Housingà33342
21Schraube650561
23Druckfeder31342
24Screw, Fil. Hd.650549
25Kurzschlusschalter610973
26Klammer27793
27Schraube28942
28Reglerfeder31426
31Screw, Fil. Hd.à650139
32Locknut, Hexà30322
35Knopf35440
45Pin, Dowel26727
46Crankshaft34734A
47Kolben34514
49Kolbenringsatz28986
49Ring set, Piston (.010 oversize)28987
49Ring Set, Piston (.020 oversize)28988
50Sicherungsring20381
52Dipper-Oil32654
53Bolt, Connecting Rod32610A
54Lifter, Valve27241
55Camshaft (Compression Release)33149A
56Washer-Thrust32323
57Gasket, Cylinder Cover*27677
59Simmerring27897
70Washer, Flat30590A
71Gear Assy., Governor (Incl.30591
72Reglerbolzen30574
73Spool, Governor30588A
74Sicherungsring29193
75Screw, Hex Hd.650488
76Oelrohr35554
77O.Ring35499
78Oelmesstab35556
79Klammer35539
85Ventilfeder31672
86Ventilsicherung31673
87Entluefter27666
88Element, Breather31410
89Gasket-Valve Cover*27234
90Cover-Valve Spring34146
91Entlueftungsschlauch35350
93Schraube650128
95Nut & Lockwasher29752
96Gasket, Carburetor*26756
98Gasket, Intake Pipe*26754
99Screw-Hex Hd.6201
100Screw, Fil. Hd.650840
101Schraube650664
102Link, Governor-to-throttle31858
140Halteblech32398
141Schraube28820
143Knopf35439
147Cover-Carburetor35122
148Schraube650257
149Schraube650765
160Spacer-Flywheel Key34080
161Stehbolzen650872
162Lamination & Coil Assy., Solid State (Incl.34443A
163Cover, Spark Plug610118
164Schraube650814
165Flywheel611081
181Keil610961
182Scheibe650815
183Nut, Flywheel650863
184Kabel35557
185Bracket, Hold Down34212
186Schraube30200
