> Roth / TORO > Handgeräte > Schneefräsen > zweistufig > 3521 > 621/38035 > 4000001 > Motor Tecumseh (Modell H35-45582N)

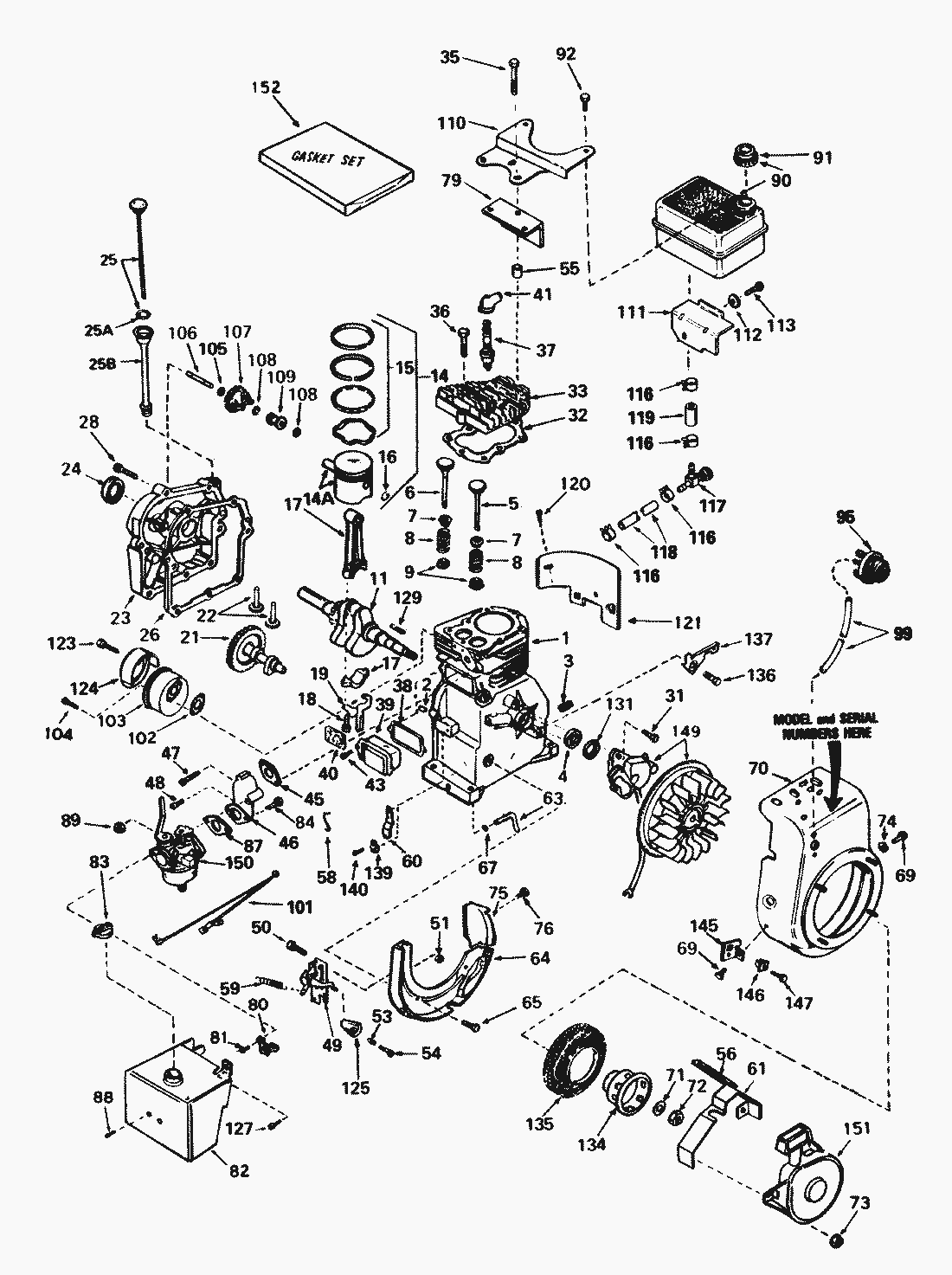

Ersatzteillisten für Toro Roth / TORO Motor Tecumseh (Modell H35-45582N)

Pos.	Bezeichnung	Ersatzteilnummer
2	Pin, Dowel	26727
3	Oelablass-Schraube	27642
4	Simmerring	32600
7	Cap, Upper Valve Spring	31671
8	Ventilfeder	31672
9	Ventilsicherung	31673
11	Crankshaft	34709
14	Kolben	34514
15	Kolbenringsatz	28986
15	Ring set, Piston (.010 oversize)	28987
15	Ring Set, Piston (.020 oversize)	28988
16	Sicherungsring	20381
18	Bolt, Connecting Rod	32610A
19	Dipper, Oil	28594
21	Camshaft (Compression Release)	33149
22	Lifter, Valve	27241
24	Seal, Oil	26208
25	O-Ringe	33590
25	Tube, Oil Fill	33893A
26	Gasket, Cylinder Cover	*27677
28	Screw, Hex Hd.	650488
31	Screw, Hex Hd.	650489
32	Gasket, Cylinder Head	*29953B
33	Head, Cylinder	30579
35	Screw, Hex Flange Hd.	650694A
36	Screw, Hex Flange Hd.	6021A
37	Plug, Spark (Champion J-8 or equivalent) Except for Canada	33636
37	Resistor Spark Plug (Canadian Regulations require RJ-17LM resistor spark plug)	34251
38	Gasket, Breather	*31619
39	Ventildeckel	31337
40	Element, Breather	31410
41	Cover, Spark Plug	610118
43	Schraube	650128
45	Gasket, Intake Pipe	*26754
47	Screw, Fil. Hd.	650840
48	Schraube	650664
50	Screw, Fil. Hd.	à650139
51	Locknut, Hex	à30322
53	Druckfeder	31342
54	Screw, Fil. Hd.	650549
55	Spacer, Tank Bracket	28212
56	Seal, Snow Guard	32576
58	Link, Governor-to-throttle	31858
59	Reglerfeder	31426
60	Lever, Governor	31510
61	Guard, Starter	34127
63	Rod, Governor	31334
64	Baffle, Blower Housing	à33342
65	Schraube	650561
67	Washer, Flat	28277
69	Screw, Hex Hd.	29212
70	Housing, Blower	34813
71	Scheibe	650815
72	Mutter	650816
73	Nut & Lockwasher	29752
74	Scheibe	650168
75	Fingerschutz	33341
76	Screw, Hex Washer Hd. Shakeproof Self-drilling	6750701
79	Baffle, Heat	33344
80	Halteblech	32398
81	Schraube	28820
82	Vergaserabdeckung	34411
83	Knob, Control	34585
84	Screw, Hex Hd.	6202
87	Gasket, Carburetor	*26756
88	Schraube	650257
89	Nut & Lockwasher	29752
90	Benzintank	34711
91	Cap, Fuel Tank	34210
92	Schraube s	650665
95	Primer Assy.	34814
99	Line, Primer	32180B
101	Wire, Ground	34241
102	Gasket, Muffler	*30081
103	Auspuff	30996

Gebrauchsanweisungen

Pos.	Bezeichnung	Ersatzteilnummer
	Piston & Pin Assy. (.010 over size) (Incl.	32548B
	Piston, Pin & Ring Assy. (.020 oversize) (Incl.	34516
	Valve, Intake (1/32 oversize) (Incl. #9) 5 6 2_225010 1 38035 Valve, Intake (1/32 oversize) (Incl.	29315C
	Rod Assy., Connecting (Incl.	30963B
	Piston & Pin Assy. (Std.) (Incl.	32538B
	Piston & Pin Assy. (.020 over size) (Incl.	32549B
	Pipe, Intake (Incl.	28416A
	Piston, Pin & Ring Assy. (.010 oversize) (Incl.	34515
	Cover, Cylinder (Incl.	34683
	Valve, Intake (Std.) (Incl.	29314B
	Valve, Exhaust (Std.) (Incl.	29313C
	Control Assy., Speed (Incl.	à33858A
	Dipstick, Oil (Incl.	34676
	Cylinder Assy. (Incl.	34708
